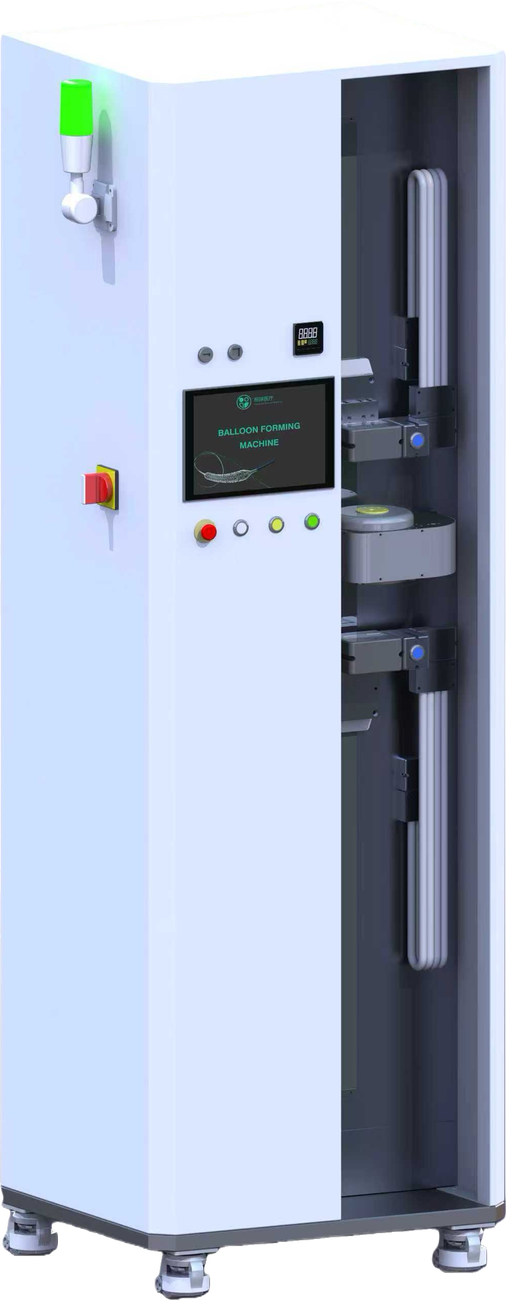

Balloon Tubing Pre-Stretching Machine
CGT-PSM-1000 / CGT-MPSM-1000
Industrial equipment that automatically stretches raw polymer tubing into clear, consistent preforms for subsequent balloon blow-molding — with radial compression heating for fast, uniform results.
Tubing into preforms,
clear and consistent.
Traceable by design
Consistent preforms, every load.
Radial compression heating and an intuitive touchscreen HMI deliver repeatable stretching with improved preform clarity — no dedicated tooling changes for tubing up to 9 mm.
Capabilities
Clarity and speed, dialled in
Contact heating
Radial compression enables shorter cycles and clearer preform transitions than non-contact heating.
Efficient process control
Intuitive touchscreen HMI; a 20–25 s cycle per 20 mm PTCA balloon preform, including load/unload.
Single tooling design
Uniform heating of tubing up to 9 mm without dedicated tooling changes.
Compact footprint
Required floor space under 1 m² (600 × 500 × 1850 mm).
Single or multi-station
The CGT-PSM-1000 outputs one preform per run; the CGT-MPSM-1000 outputs five.
Specifications
Technical details
- Models
- CGT-PSM-1000 / CGT-MPSM-1000
- Output per run
- 1 / 5
- Effective stroke
- 400 mm up, 600 mm down
- Max stretching speed
- 200 mm/s
- Max tubing diameter
- 9 mm
- Gripping-head blades
- 5 × 75 mm
- Temperature
- Room–150°C
- Dimensions
- 600×500×1850 mm
- Weight
- 180 kg
- Total power
- 1.5 kW
- Power supply
- Customizable voltages
