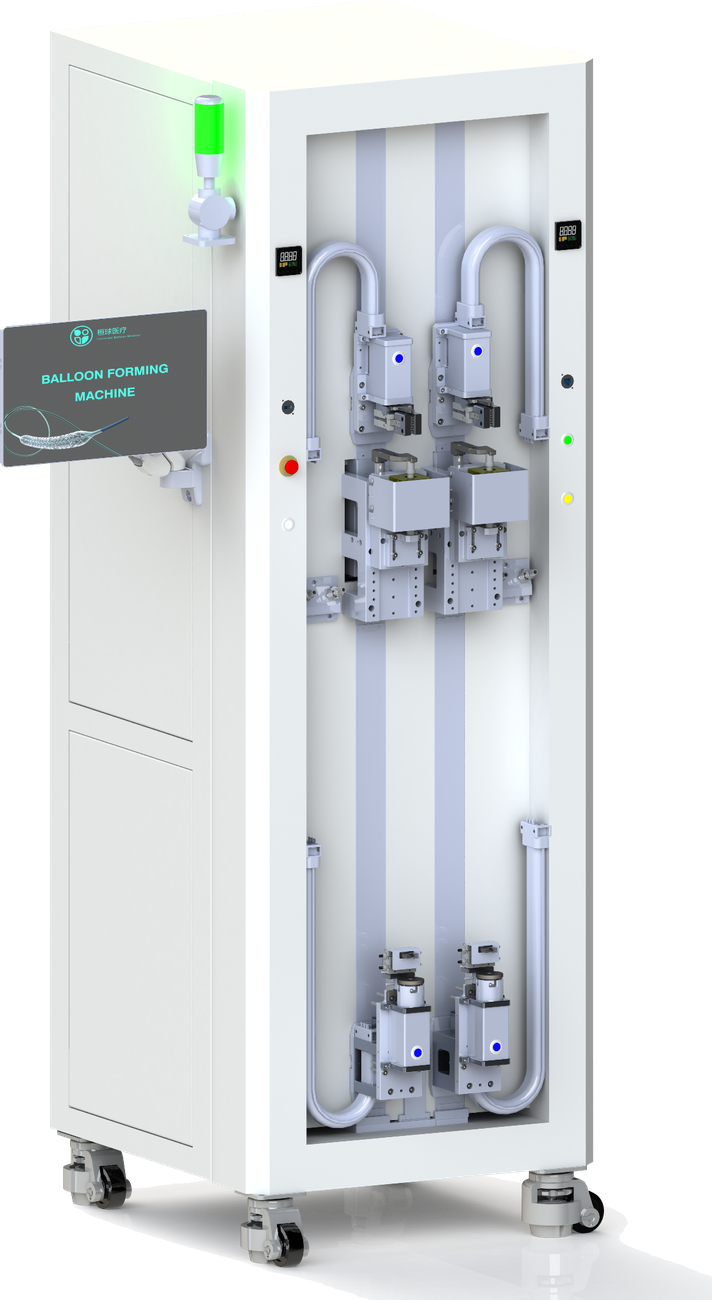

Dual-Mode Balloon Forming Machine
CGT-DUBF-1000 / CGT-DUBF-2000
A dual-station vertical forming system with advanced copper-alloy water jackets — doubling throughput with fast, uniform heat transfer and tight thermal control.
Two stations, twice the output.
Same micron precision.
Traceable by design
Every cycle, measured and logged.
Copper-alloy water jackets provide fast, uniform heat transfer — 110 °C→35 °C in 15 s and 25 °C→80 °C in 20 s, within ±2 °C at key stages. The CGT-DUBF-2000 adds SQL storage and host-computer communication.
Capabilities
Double the throughput, engineered in
Customizable process recipes
Flexible multi-step recipes for temperature, tension, pressure and logic control.
Real-time process monitoring
Key variables displayed graphically on the HMI for precise, consistent forming.
Mold water cooling system
Rapid mold cooling to room temperature; integrated water/air purge removes residual water.
MES & system integration
Connects to factory networks and MES for efficient production management.
SQL storage & visualization
The CGT-DUBF-2000 preserves historical records and integrates data into customizable dashboards.
Specifications
Technical details
- Models
- CGT-DUBF-1000 / CGT-DUBF-2000
- Process N₂ pressure
- 0–50 bar
- Process air pressure
- 0–7 bar
- Temperature
- 20–300°C
- Cycle time
- 130 s / 2 balloons
- Balloon diameter
- 0.5–50 mm
- Balloon length
- 1–300 mm
- Cooling
- Water cooling
- Dimensions
- 640×850×2000 mm
- Weight
- 350 kg
- Installed power
- 3.5 kW
- Customizable sequences
- 200

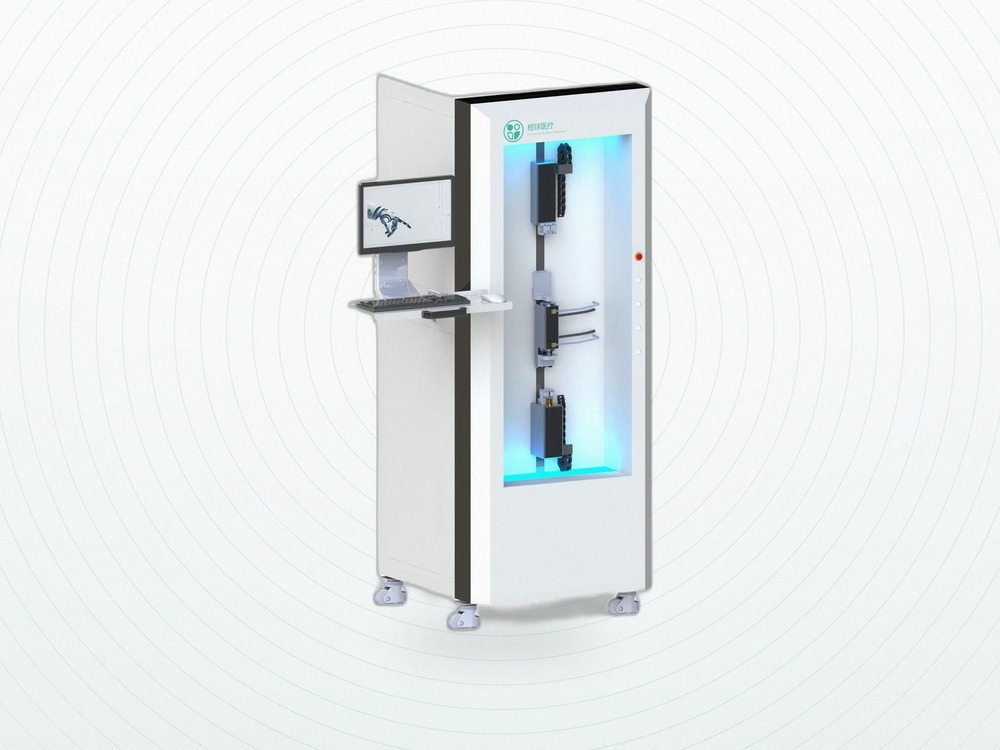

More balloon forming machines
