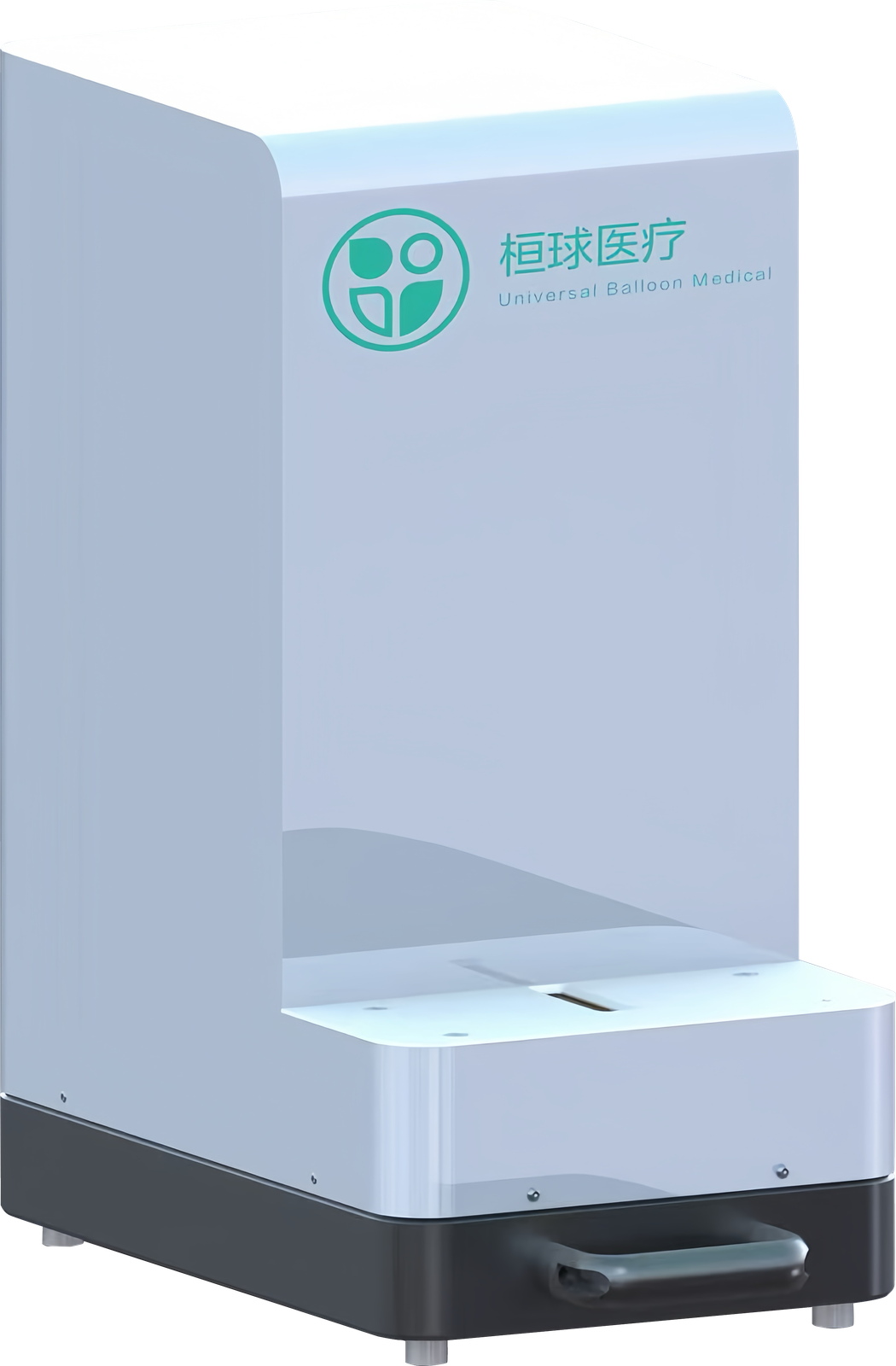

AI-Powered Stent Inspection Machine
CGT-SD-1000
A machine-vision system for medical stent quality control — inspecting inner and outer surfaces to submicron precision, with no mandrels required.
Cracks, welds, surfaces.
Screened to submicron.
Traceable by design
Inspected, measured, traceable.
Sub-micron rotational positioning and coaxial displacement sensors measure the stent’s 3D structure to ±2 μm, while deep-learning screening flags cracks, weld inconsistencies and surface irregularities.
Capabilities
Submicron stent inspection
Sub-micron rotation positioning
Patented drive technology achieves sub-micron rotational positioning accuracy for stents.
High-precision dimension measurement
Vision and coaxial displacement sensors measure the stent’s 3D structure to ±2 μm.
High-resolution optical imaging
Specialized illumination and an ultra-high-resolution camera detect defects as small as 5 μm.
AI-based defect detection
AI plus vision inspection for mixed-batch identification; a false-detection rate below 0.1%.
Fast inspection efficiency
For a 40 mm stent: dimension ~2 s, outer-surface ~25 s, inner-surface ~25 s (optional).
Specifications
Technical details
- Model
- CGT-SD-1000
- Inspection area
- Inner & outer surfaces
- Inspection efficiency
- <60 s (40 mm)
- Dimension accuracy
- ±2 μm
- Size range
- 10–60 mm
- Operation
- No mandrels required
- False negatives
- <0.1%
- Monitor
- 3840×2160
- Storage
- 16–64 TB
- Dimensions
- 1000×850×810 mm
- Weight
- 250 kg
- Power
- 1 kW
